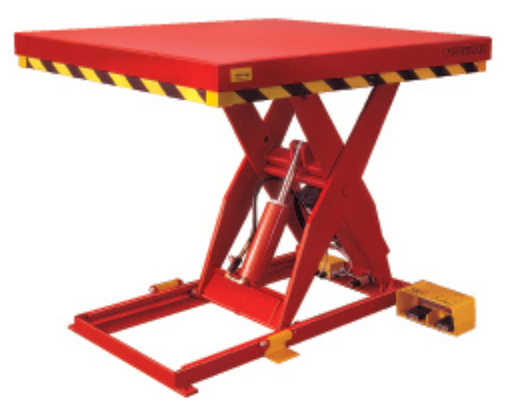

Single Scissor Lift Platforms

As one of Australia’s leading jib crane suppliers, Total Lifting Solutions can supply you with high-quality wall mounted or portable jib cranes for sale that will get the job done. Our team of certified jib crane manufacturers have the experience and skills required to design and build the most advanced jib cranes Australia has to offer.

Contact Us Re: This Product

    This combination does not exist.

    Buy Now

    The Scissor Table range has been designed, developed and built to give long service with minimum maintenance required.

    Technical Features:

    • Power supply: 3 phase 415v + earth & neutral

    • Emergency stop valve on all cylinders

    • Manual emergency lowering valve

    • Pressure compensating lowering valve

    • Adjustable return valve

    • Safety trip bar on all sides

    • Maintenance safety bar for service

    • Filter system: in oil tank and on oil return

    • Noise: 52 - 58 dB

    • Conforms to AS1418-8 safety demands

    • Rust preventing paint, coated with polyurethane lacquer

    • Control voltage: 24v DC on all functions including the solenoid valve


    Large Single Scissor Lift Table range covers tables with travel greater than 1200mm and capacities up to 10,000 kg.

    Commonly these tables are used in floor to mezzanine and floor to floor applications where single or multiple pallet loads or equipment are being transferred. Suitable as dock levellers.

    Choose from a wide range of options to ensure that their scissor table exactly suits your needs.

    • Variable platform sizes.

    • External and remote power packs.

    • IP 56 electrical fittings.

    • Fork sockets.

    • Differet platforms including chequerplate, special paints and stainless steel skins.

    • Safety skirts.

    • Powered traverse.

    • Air motors.

    • Tandem tables.

    • Lifting lugs.

    • Personnel Lift Modifications.

    All Safetech Lift Tables meet or exceed Australian safety standards.


    Personnel lifts need to comply with Occupational Health and Safety regulations regarding the safe carrying of people on a scissor table. Safetech is experienced in designing Scissor Tables for unique and difficult applications.


    Applications

    • Personnel Lifts & Goods Lifts.

    • Dock Loading Platforms.

    • Work Platforms.

    • Mezzanine Lifts

    • Freight Hoists

    Scissor Lift Tables - Large Singles Specification:

    MODEL:  TL2000S
    Description:

    CapacityRaised HeightClosed HeightPlatform WxL       Lift/SeckWWeight
    2000kg1050 (mm)  230 (mm)     1000mm x1300mm22       0.75235Kg

    unit also available in stainless steel. Add suffix "SS" to code. # Other platform sizes to order.
    MODEL:  TL1000S
    Description:

    CapacityRaised HeightClosed HeightPlatform WxL       Lift/SeckWWeight
    1000kg1010 (mm)  180 (mm)     1000mm x1300mm18      0.75185Kg

    t also available in stainless steel. Add suffix "SS" to code. # Other platform sizes to order.
    MODEL:  TM3000S
    Description:

    CapacityRaised HeightClosed HeightPlatform WxL       Lift/SeckWWeight
    3000kg 1350 (mm)   250 (mm)      1000mm x1300mm18      2.2310Kg

    MODEL:  TS2000S
    Description:

    CapacityRaised HeightClosed HeightPlatform WxL       Lift/SeckWWeight
    2000kg1750mm      250 (mm)     1200mm x2200mm35      2.2535Kg




    MODEL

    Capacity

    Vertical

    Height



    Base

    Base

    Pump

    Power Unit

    Elevation time

    Weight

    STANDARD PLATFORM SIZES Safety bar only





    Travel (mm)

    Min

    Max

    Width

    Length







    with std PU

    c/w Std Plt

    Length

    Wide



    Tonnes

    mm

    mm

    mm

    mm

    mm

    LPM

    kW

    Supply

    sec.

    kg

    mm

    mm

    AS4-1250

    4

    1250

    310

    1560

    1000

    1950

    10

    2.4

    415/3/50

    45

    610

    2050

    1300

    AS6-1250

    6

    1250

    320

    1570

    1000

    1950

    10

    2.4

    415/3/50

    52

    610

    2050

    1300





























    AS4-1250W

    4

    1250

    310

    1560

    1400

    1950

    10

    2.4

    415/3/50

    45

    610

    2050

    1700

    AS6-1250W

    6

    1250

    320

    1570

    1400

    1950

    10

    2.4

    415/3/50

    52

    610

    2050

    1700





























    AS4-1500

    4

    1500

    340

    1840

    1400

    2310

    21

    5.5

    415/3/50

    30

    2000

    2400

    1800

    AS4-1500

    4

    1500

    440

    1940

    1400

    2900

    21

    5.5

    415/3/50

    30

    2000

    3000

    1800

    AS6-1500

    6

    1500

    440

    1940

    1400

    2900

    21

    5.5

    415/3/50

    37

    2000

    3000

    1800





























    AS4-1500W

    4

    1500

    340

    1840

    2000

    2310

    21

    5.5

    415/3/50

    30

    2000

    2400

    2400

    AS4-1500W

    4

    1500

    440

    1940

    2000

    2900

    21

    5.5

    415/3/50

    30

    2000

    3000
