Spring Balancers

As one of Australia’s leading jib crane suppliers, Total Lifting Solutions can supply you with high-quality wall mounted or portable jib cranes for sale that will get the job done. Our team of certified jib crane manufacturers have the experience and skills required to design and build the most advanced jib cranes Australia has to offer.

Contact Us Re: This Product

    This combination does not exist.

    Buy Now

    Suitable Industries: Engineering, manufacturing, abattoirs, process lines and job shops.

    Applications: Suspension of electric or pneumatic power tools, or for hanging tools, parts or welding equipment at workstations or assembly lines.

    Standard Features

    • Comprehensive choice of models

    • Premium quality product range

    • Products sourced from PWB Anchor approved suppliers

    • Subject to rigorous PWB quality approval inspection procedures

    • Backed by PWB Anchor technical support and warranty

    Benefits

    • Improved working efficiency and reduced fatigue

    • Decreases possibility of strains and other workplace injuries

    • Affords better use of work space

    • Allows for consistent, efficient placement of tools

    • Prevents damage to tools

    • Flexible placement

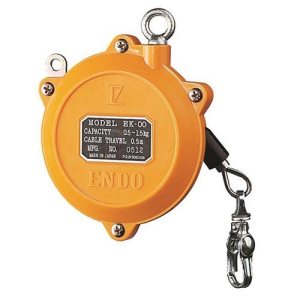

    EK Series


    Featuring lightweight PVC bodies on the EK-00 and EK-0 models, this superior range of spring balancers has been designed for general purpose use across all industrial applications. The EK-11, EK-12 and EK-13 models have been specifically designed for heavier load capacity, and in the event of spring breakage, feature stopper devices as standard equipment.

    Model no

    Part No

    Balance Range

    Balance Range

    Stroke

    Weight

    Special Features

    Min. (kg)

    Max. (kg)

    (m)

    (kg)

    EK00

    43335

    0.5

    1.5

    0.5

    0.2

    PVC Body

    EK0

    43334

    0.5

    1.5

    1.0

    0.5

    EK11

    43338

    70.0

    85.0

    1.5

    22.5

    Large Capacity

    EK12

    43339

    85.0

    100.0

    1.5

    24.4

    EK13

    43340

    100.0

    120.0

    1.5

    27.2

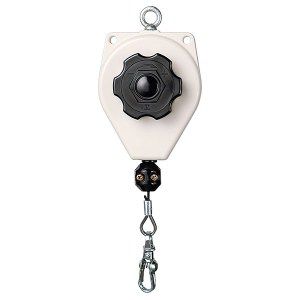

    RSB Series


    The RSB Series incorporates a ratchet system enabling the balancer to be locked in any position. When engaged, the drum brake mechanism prevents the balancer from pulling the load upwards, while at the same time enabling the load to be pulled down. When disengaged, the balancer acts as a regular spring balancer.

    Model No

    Part No

    Balance Range

    Balance Range

    Stroke

    Weight

    Special Features

    Min. (kg)

    Max. (kg)

    (m)

    (kg)

    RSB15

    43374

    9.0

    15.0

    1.5

    7.4

    Can be locked in


    any position

    ATB Series


    The Air Tool Balancer range utilises an air hose as the load carrying device rather than a separate wire rope, thus preventing the twisting of wire rope and hoses. The hose is made of urethane and the rotary joint is an O-ring sealed type.

    ER Series



    Featuring a long cable travel and ratchet system, the range of ER Series torque reels is ideal for hanging pendant switches and other similar applications.

    Model No


    Part No

    Balance Range

    Balance Range

    Stroke

    Weight

    Special Features


    Min. (kg)

    Max. (kg)

    (m)

    (kg)

    ER3


    43349

    3.0

    3.0

    1.4

    Long stroke lock in any position

    ER5


    43350

    5.0

    3.0

    1.5
