Tube Lifter
As one of Australia’s leading jib crane suppliers, Total Lifting Solutions can supply you with high-quality wall mounted or portable jib cranes for sale that will get the job done. Our team of certified jib crane manufacturers have the experience and skills required to design and build the most advanced jib cranes Australia has to offer.
'VACUEASYLIFT' the original of its kind!

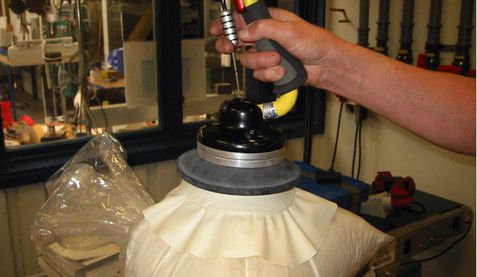

VacuEasylift is a manual vacuumlifting device that handles almost any type of load.
The extremely smooth and quick operation is accomplished by using the same handle to lift, lower and release the load and by using the vacuum to hold and lift the load.Industry, engineering shops, warehouses, distribution terminals, VacuEasyLift makes lifting easy in all conceivable working conditions.
VacuEasyLift makes lifting safer, both for operators and for the products being handled. Once VacuEasyLift is installed you will no longer need to hire weightlifter staff to lift and move things.
Easy to use:Learning how to use VacuEasylift takes no time at all. A simple combination handle, which is manipulated with minimum effort,is all it takes to operate the system. The equipment can easily be adjusted to the optimum working height of each individual operator.
Market Leader:With more than 40,000 units currently in use, TAWI is the market leader in Vacuum Lifting equipment.The VacuEasylift is capable of lifting up to 270kgsThe VacuEasylift can lift almost anything!
Bags & Sacks (Paper, plastic polywoven and hessian)
Boxes Cases & Cartons
Drums, Rolls and Pails.
Sheet material (Boards, lenths of Timber,Steel and Plastic Sheet, Doors, Work Surfaces and Glass).
Other Miscellanious Items
Model* | VM80 | VM100/120/140 | VM160/180 | VM200/230 | VM250 | VM2160/2180 | VM300 |
Lifting capacity (kg) | 20 | 30/40/50 | 60/80 | 100/120 | 180 | 120 | 270 |
Length of lift tube(mm) | 2000 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
Diameter (mm) | 80 | 100/120/140 | 160/180 | 200/230 | 250 | 2 x 160/180 | 300 |
Velocity m/s | appr 1 m/s | appr 1 m/s | appr 1 m/s | appr 1 m/s | appr 1 m/s | appr 1 m/s | appr 1 m/s |
Lifting height (mm) | 1500 | 1800 | 1800 | 1700 | 1500 | 1800 | 1500 |
Extended flexed handle | N/A | 800 + 800 mm | 800 + 800 mm | 800 + 800 mm | Available on | N/A | Available on |
